Construction Works Cable Pulley Block Hook Type Grounding Pulley Earth Stringing Block

Product Categories
Ningbo Newart Power Machinery Tools Co.,Ltd.
Contact Now

Construction Works Cable Pulley Block Hook Type Grounding Pulley Earth Stringing Block

  • 1
  • 2

Brand Name : Newart

Model Number : SHL,SHG

Certification : ISO,CE

Place of Origin : Ningbo,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 5-7 days after deposit

Packaging Details : Exported Box and carton

Application : Construction works

Material : Aluminum and nylon

Name : Grounding Stringing Block

Applicable Conductor : Conductor or Steel Wire Rope Dia 6-28

Bottom Diameter : Dia 60-75

Warranty : At least one year

Sheave Material : Aluminum alloy or steel

Usage : Eliminate the faradism

Contact Now

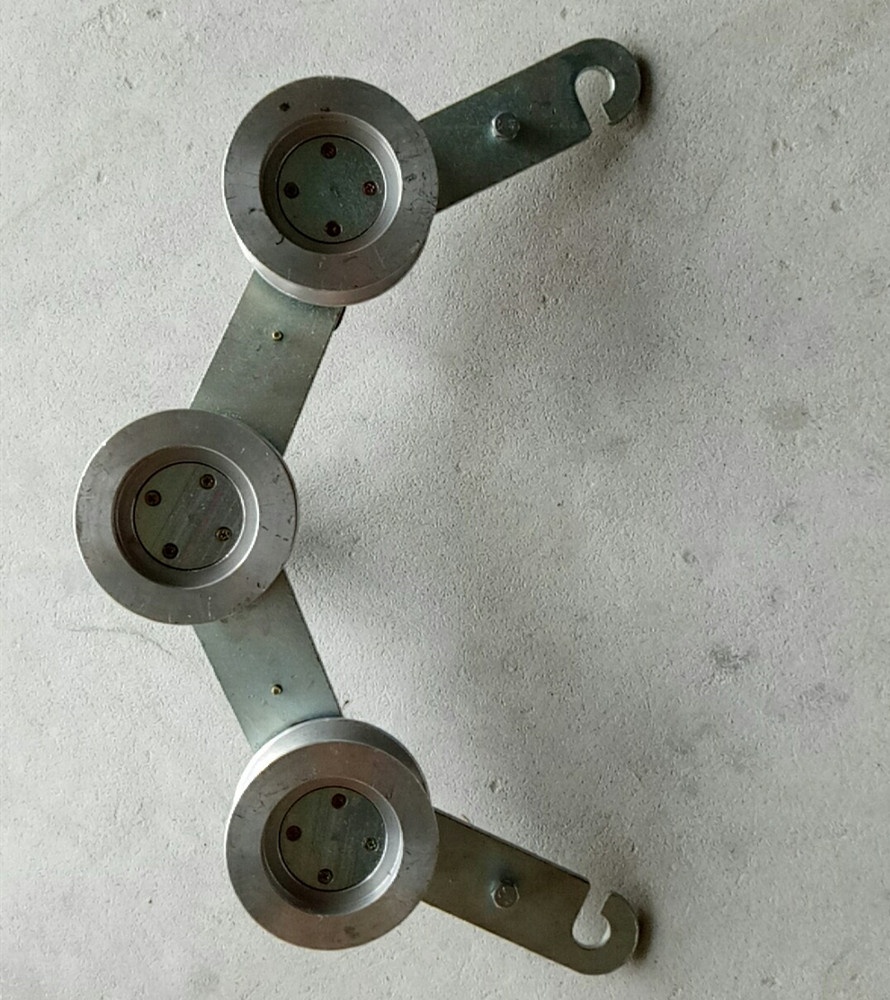

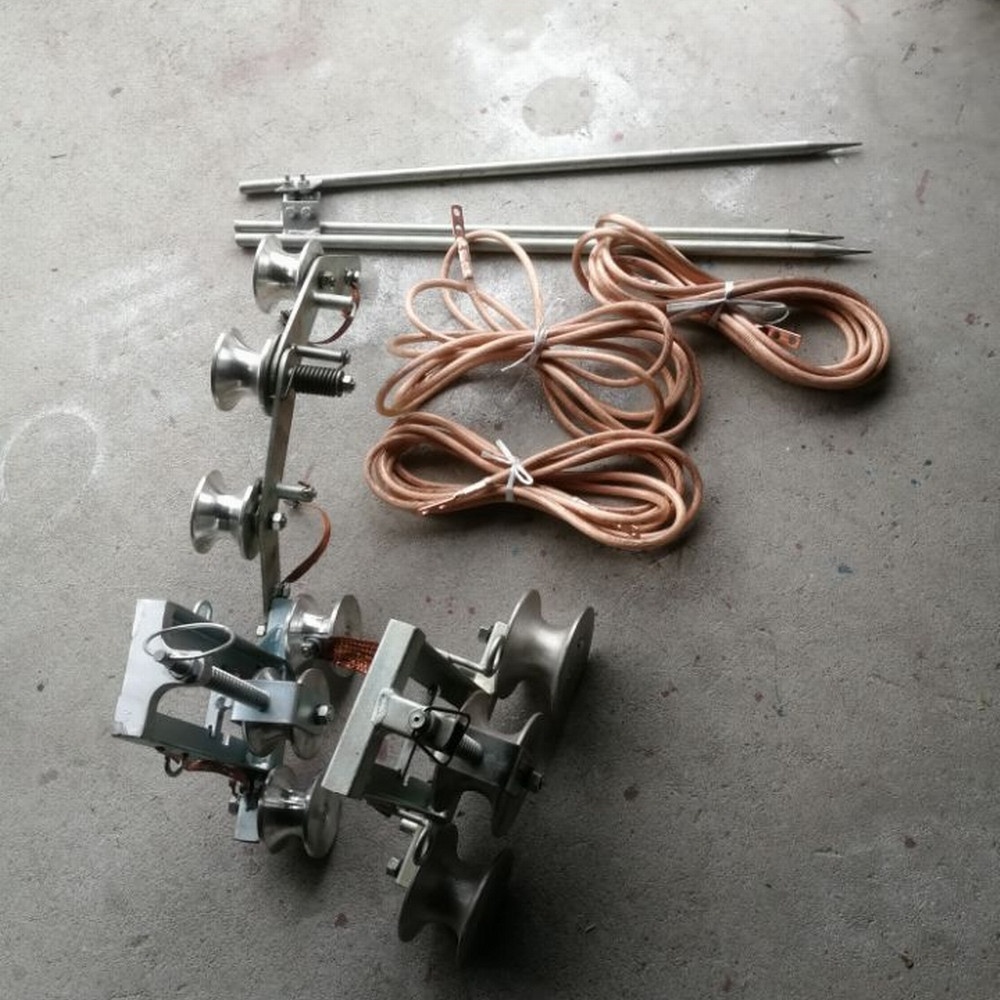

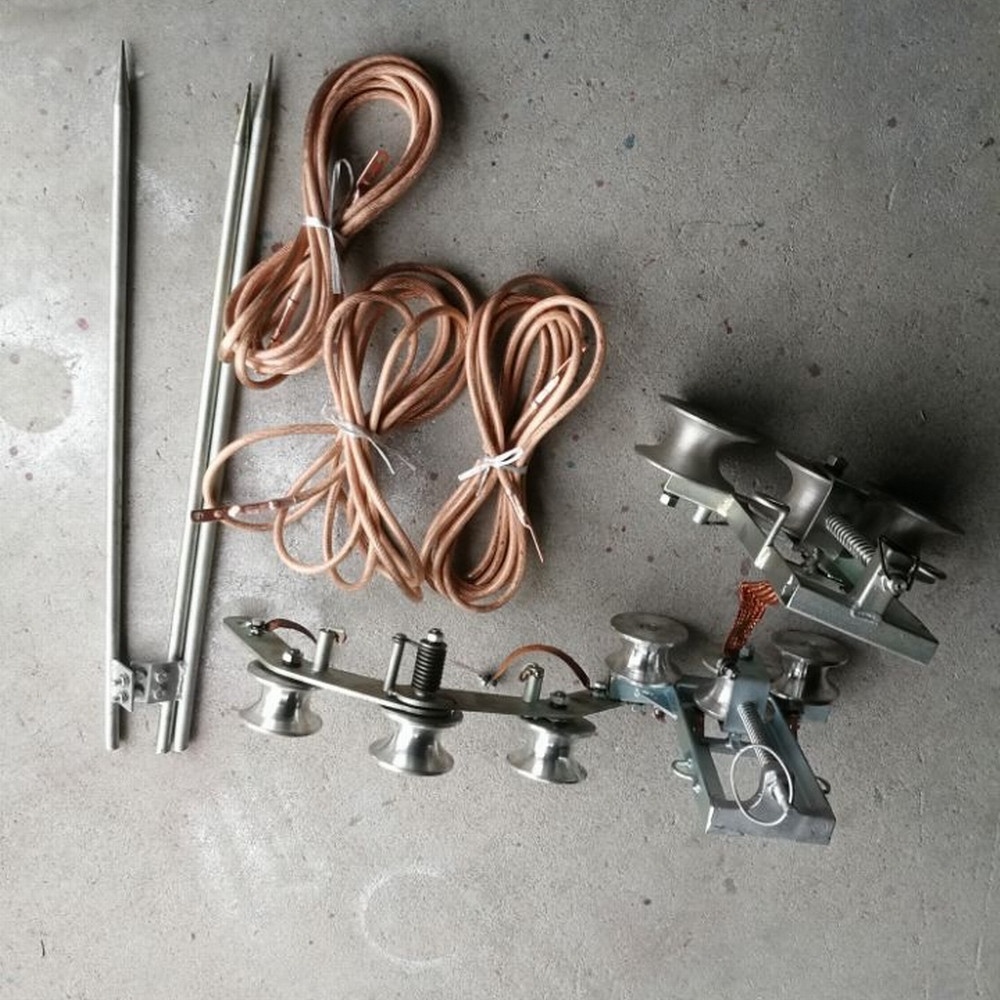

Conductor Or Earth Wire Hook Type Grounding Pulley Earth Stringing Block

Uses: to eliminate induced staticelectricity in conductor or grounding wire spread when tensioning erect wires .

Notes:grounding wire pileprovide additionally .

1. Toeliminate induce electricity in conductor and grounding wire when releasingwires .

2. Mountedon the outlet side of tensioners or the inlet side of puller ,and drawn by twostay wires .

3. Tri-sheavemechanism ,compacted automatically .

4. Maximumallowable current is 100A,time electrified is 0.1 second.

5. It isrecommended that section of mating conductor is 25 mm2

Technical Data

Item number Model

Bottom Diameter

(mm)

 Applicable Conductor Sheave Material

Weight

(kg)
12111 SHL40-75D Φ75

Φ6-Φ40

Conductor

 Aluminum Alloy 4.5
12111A SHL48-75DA

Φ6-Φ48

Conductor

 5.0
12112 SHG32-60D Φ60

Φ6-Φ32

Steel Wire Rope

And Steel strand

steel

 5.0
12112A SHG38-60DA

Φ6-Φ38

Steel Wire Rope

And Steel strand

 5.5
